Announcement: EX-P27 - New Preamplifier With HT Bypass (12 Years Anniversary)

Hi Kinki Fans ,


Good news! Kinki Studio is proud to be celebrating its 12th year anniversary in design and manufacture of high-quality audio industry.

With the wonderful year, we would like to share a nice news with you. Our new preamplifier

with HT bypass - EX-P27 is launching now ! We hope that many of you will wish to have it.


To design a new version of amplifier isn't simple. The days of equipping them with just a

DAC, preamplifier, power amplifier and a pair of speaker , is now no longer the norm.

There have wide selection of amps on the market , offering a vast selection of features across a range of model and prices. We are confident that our product should be somethings

to suite your budget and requirement and get your music system singing and now this is reason of EX-P27 here with you !

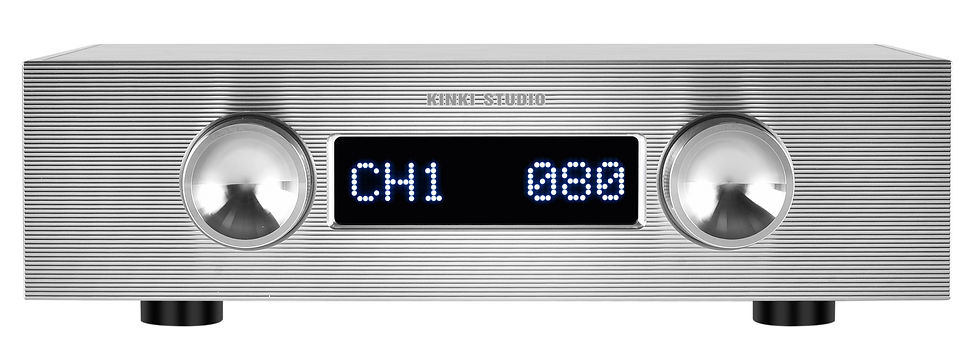

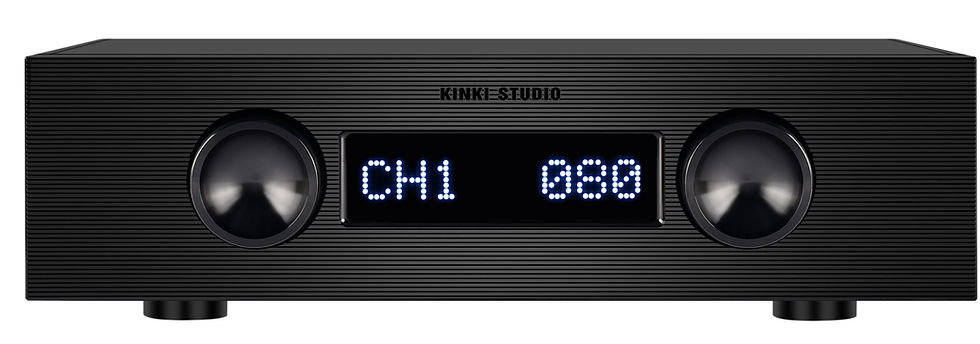

EX-P27 comes with both silver and black color.





Great feature - Input Connector: RCA x 4, XLR x 4, HT Bypass x 1 and Output Connector: RCA x 1, XLR x 1.

Now, you may be wondering, what is the difference between EX-P7 and EX-P27 ?

Why don't we named it as EX-P7+ ?


It might be a reason behind why Kinki's designer - Ivan named it in this way . Maybe it is for12th years anniversary - so add a number of 2 in front of P7 or it may because of second edition of EX-P7 or it is just for the number sequence , in the future will still have EX-P37,

EX-P47 and etc ? Erm......let's guess and wait for it ...... :)

Please do remember to follow and like our FB pages- https://www.facebook.com/kinkistudio2018/ for the latest news and update.

The concept for EX-P7 and EX-P27 is same as EX-M1 and EX-M1+ , the EX-P27 is not a replacement for the EX-P7. The EX-P27 is built to address customers request of the preamp with HT Bypass feature.

Both models will co-exist. If you don't pair with HT system , you don't need the feature of HT-Bypass , you can still go for the EX-P7 version.

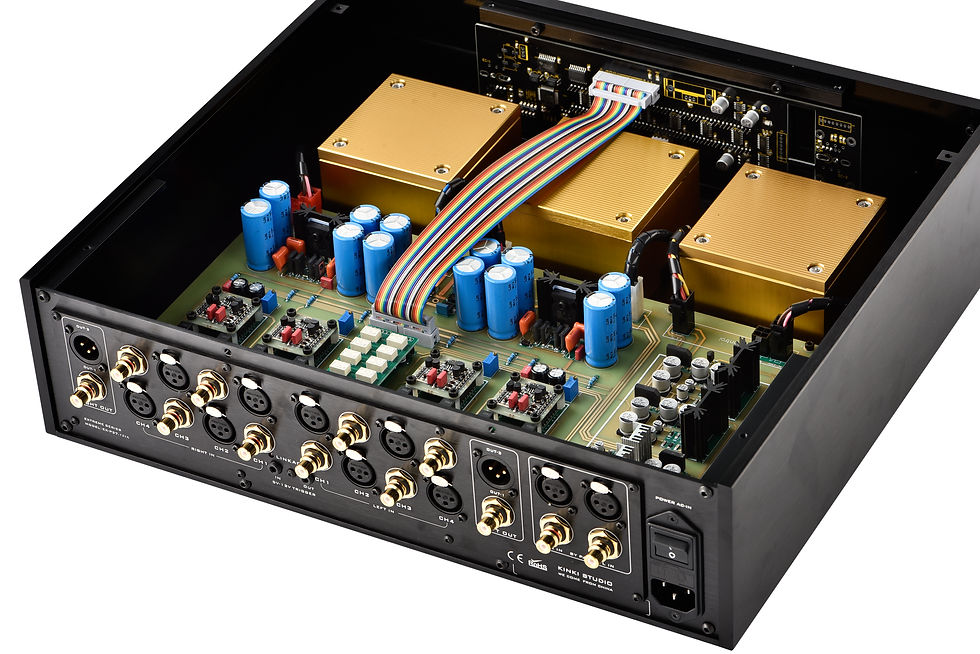

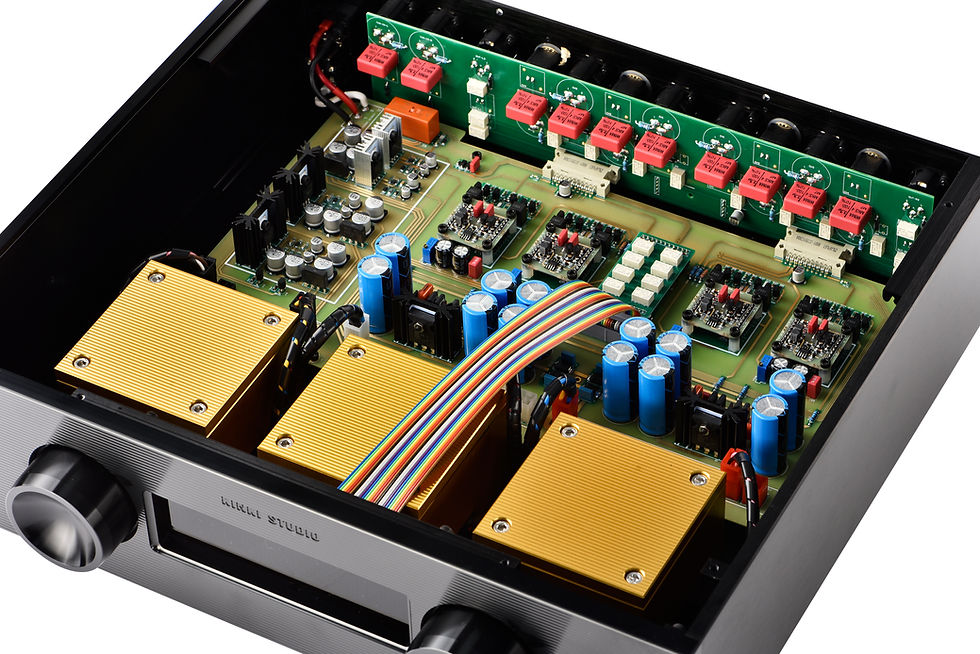

Anyway , let focus on the EX-P27's new feature . EX-P27 comes with new version of PCB board , it is improved with more full body mid-range sound . It uses three nos of toroidal encapsulated transformers, one each to power up the display, volume control, buffer and amplification stage so that the power does not interfere with each other to improve the channel separation. EX-P27 is essential dual mono design in the same chassis. ​ ​

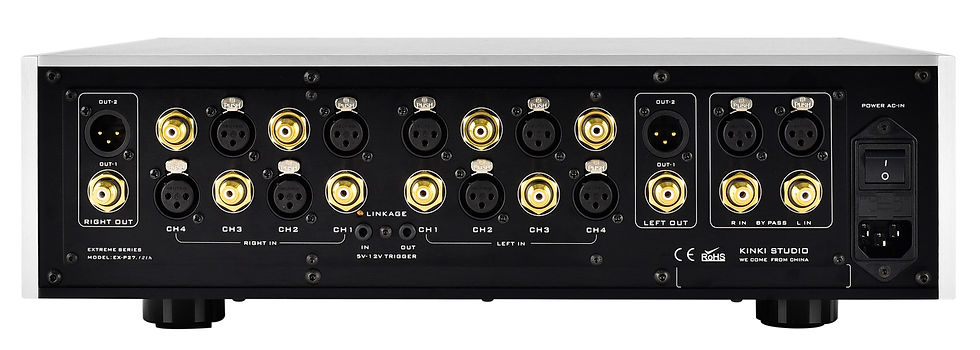

HT Bypass Input HT Bypass Input is located at left rear panel. This feature enable users connecting an external preamplifier to a same power amplifier such as AV preamplifier. This feature can be enabled by using remote control . When it is in HT Bypass mode, the EX-P27 preamplifier's volume /gain controls are bypassed, signal from the connected preamp at HT Bypass terminal passthrough the EX-P27 directly to the amplifier.


Technical Parameters

  • Frequency Response: 0-50kHz (±0.1dB) ,0-150kHz (±1dB), 0-300kHz (±3dB)

  • THDN: 0.002% (-80dB) S/N Ratio: >98dB, >100dB (A-Weighted)

  • Channel Separation: >106dB

  • Input Sensitivity: 2.25Vrms - 3.6Vrms

  • Input Impedance: 50kΩ

  • Input Connector: RCA x 4, XLR x 4, HT Bypass x 1

  • Output Voltage: 2.25Vrms - 3.6Vrms

  • Maximum Output Voltage : 16Vrms

  • Output Impedance: 75Ω

  • Output Connector: RCA x 1, XLR x 1

  • Power Consumption: 80W

  • Max Output Dimension: 430W x 120H x 330D

  • Weight: 15K


The EX-P27 comes with full function remote control.

  • POWER: On/Off EX-P27

  • HT BYPASS: Enable HT Bypass Mode

  • DISPLAY: Off/Dim/Brighten the Display

  • INPUT + INPUT -: Input Source Selection

  • V+ V- : Volume Control

  • MUTE: Mute Speaker Output

  • MODE: Output Mode Selection

➢ Output 1 : RCA Output

➢ Output 2 : XLR Output

➢ Output 1 +2 : RCA and XLR Output Operate Simultaneously

The list price for EX-P27 is US$2,898. It's available for pre-order now. A batch of EX-P27 is being manufactured, target ship date by end of June. For VAT inclusive, please contact our local distributor for further information. For customer who resides in country without a distributor, please contact us at sales@kinki-studio.com to buy from us directly.


Happy reading!


Sincerely,

KINKI STUDIO PTE LTD
