NEXT-GEN FLAGSHIP
DAZZLE INT AMP
where Power meets Fidelity
Introducing the all-new VINSHINE x KINKI STUDIO DAZZLE, the next-generation flagship integrated amplifier that redefines musical realism.
Designed from the ground up to deliver high power, low distortion, and ultra-wide bandwidth, the DAZZLE integrates Kinki Studio’s most advanced amplification technologies into a single, mechanically damped, resonance-controlled chassis.
Mechanically Damped, Resonance-Controlled Chassis
The DAZZLE’s chassis inherits the floating resonance-control structure from the Kinki Studio 79 flagship series.
Its suspended isolation design separates the main chassis from the base, guiding internal vibration through directional energy-drain spike feet that discharge mechanical energy away from sensitive circuitry.

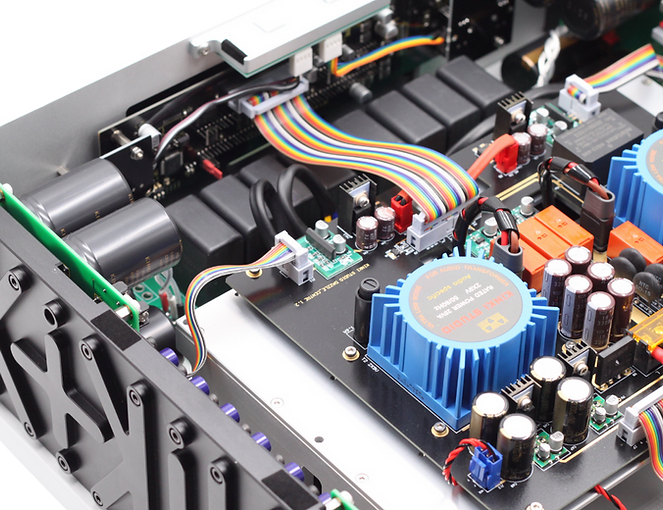

Every internal circuit is laid on 3U gold-plated PCBs for superior conductivity, ultra-low impedance, and long-term stability.
The DAZZLE’s preamp features a direct, ultra-short signal path, minimizing circuitry to preserve every nuance, detail, and dynamic of the source.
The preamp section employs an independent voltage servo architecture, ensuring absolute DC precision and eliminating the sonic coloration caused by capacitive coupling.
Power Supply
Excellence
To achieve uncompromising performance, the DAZZLE is equipped with:
-
Total eight(8) sets of high speed, high current, low noise power supplies dedicated to control, display, protection, preamp, and power amplification stages.
-
Dual 800W tightly matched, low magnetic-loss, high efficient Toroidal Transformers delivering a combined 1600W of clean, instantaneous power for the dual-mono left and right channels.
-
These tightly matched toroidal transformers minimize magnetic leakage and noise, providing pure, stable, and dynamic energy delivery — ensuring effortless control even during complex musical passages.
Power
Foundation of good sound
The DAZZLE’s power stage uses four large, rare in its class, 10 µF Vishay MKP film capacitors, paired with four 6,800 µF high-endurance, Kinki Studio–tuned reservoir capacitors for AC/DC rectification, per channel.
This carefully engineered capacitor bank network ensures clean, stable DC voltage delivery to the amplifier circuits, minimizing ripple and electrical noise. The result is extraordinary transient speed, allowing each note to emerge with clarity, detail, and musical naturalness.
From the subtlest harmonic overtones to explosive dynamic peaks, the DAZZLE captures the full depth and texture of every recording.
SSCLD
Power & Output Stage
At the heart of DAZZLE lies the all-new SSCLD module(Super Symmetry Current Linear Drive), an evolution of Kinki Studio’s proprietary high-bandwidth topology.
This next-generation design delivers:
-
Ultra-wide bandwidth
-
High dynamic range
-
High voltage swing
-
Ultra-low distortion
The result is an amplifier that reconstructs the full dynamic range and signal integrity of the source, approaching analog perfection.
Every musical nuance is preserved — from the gentlest decay of a violin string to the explosive slam of a kick drum.
Ultra-Clean Power. Unmatched Performance.
Paired with a high-current EXICON MOSFET array (12 per channel), the SSCLD module delivers unmatched control and stability, ensuring that every speaker receives the exact current it demands. This combination provides absolute grip over even the most challenging loudspeaker loads, translating into powerful, clean, and highly precise dynamics that remain consistent across all volumes.
From the softest, most delicate musical passages to the most explosive crescendos, the amplifier maintains effortless authority, exceptional clarity, and faithful reproduction of every nuance.
VINSHINE X KINKI STUDIO
Collaboration Enhancements
The DAZZLE flagship integrated amplifier, in collaboration with Vinshine Audio, incorporates a series of exclusive high-end refinements that elevate performance & beyond.
ShoonTH High-End Fuse — cryogenically treated at −196°C for over 120 hours, enhancing conductivity and reducing micro-distortion across the signal path.
Exact Express FLAME Series Internal Cabling
Exact Express Flamed - AC power, DC, signal, and loudspeaker cables ensure optimal current flow, superior signal integrity, and high-fidelity transmission throughout the amplifier.
By minimizing resistance, cross-talk, and electromagnetic interference, these precision Flame cables suppress noise, preserve delicate musical details, and maintain the purity of the signal, allowing the DAZZLE to deliver clearer, more dynamic, and highly transparent sound.
ShoonTH Speaker Binding Post
Crafted from OFC (oxygen-free copper) and cryogenically treated at −196°C, then plated in copper, silver, palladium, and gold. This precision process maximizes conductivity, minimizes signal loss, suppresses micro-distortion, and preserves the finest musical details, delivering exceptional sonic clarity, resolution, and dynamic control.
ShoonTH Cryo-Treated AC Inlet
Vinshine X DAZZLE’s power input uses a −196°C cryogenically treated OFC IEC AC inlet, engineered to minimize electrical resistance and maximize purity of power delivery.
This precise treatment eliminates microscopic imperfections in the metal, allowing the amplifier to receive clean, ultra-stable current, which translates directly into enhanced dynamic response, improved resolution, and precise musical detail.
Experience the Dazzle Difference
The Vinshine X Kinki Studio DAZZLE combines a dual-mono design, dual low-loss toroidal transformers, SSCLD ultra-wide bandwidth, high-current EXICON MOSFET outputs, to deliver clean, powerful, and precise dynamics.
Exact Express FLAME internal cabling, ShoonTH cryo-treated IEC socket, fuse, and custom OFC speaker binding post ensure maximum signal integrity, minimal distortion, and exceptional sonic clarity. The mechanically damped, resonance-controlled chassis and ultra-short preamp signal path preserve every nuance and detail from your source.
Every element of the DAZZLE is precision-engineered and master-tuned to create a listening experience that is transparent, dynamic, and deeply immersive.
Hear music as it was meant to be heard — explore the DAZZLE today.
SPECS
-
Rated Power Output: 300W @ 8Ω / 560W @ 4Ω
-
Frequency Response: 10Hz - 30kHz
-
THD+N: 0.0054%
-
SNR: > 115 dB @ 1kHz
-
Power Consumption:
-
0.8W (Standby)
-
1600W (Maximum Output Power)
-
PARAMETERS
INPUTS & OUTPUTS
-
Inputs:
-
RCA x 3 [CH1/CH2/CH3]
-
XLR x 2 [CH4/CH5]
-
Preamp Input x 1 [BYPASS]
-
-
Input Impedance:
-
RCA 50kΩ
-
XLR 100kΩ
-
-
Outputs
-
4mm Binding Post x 2pr
-
DIMENSION & WEIGHT
-
Dimension: 440 × 410 × 170 mm (Incl. Spikes)
-
Weight: 33KG
REVIEWS
The Dazzle Integrated Amp is the Definition of a Flagship.
The Dazzle is a statement piece from Kinki and Vinshine who worked together to make the best integrated amp they could within their price point of $8500 USD and without the greed that often shows up in “high end” audio. They succeeded in all areas and this amp looks, feels, weighs and has parts inside that rival $25k integrated amps.
